Make:

Winget Syncro

Type:

D14 & D13 Heavy Intermediate Wire Drawing Machines

Description:

(depending on model)

This machine employs a three speed gearbox which is integral with the first pullblock housing and this, together with a double finishing capstan, provides 6 finishing speeds. The first block is driven through a 6 speed gearbox permitting this to be synchronised with subsequent pullblocks allowing up to 7 dies to be omitted.

Specification:

Maximum Entry

6.35mm or 8mm soft copper or E.C. aluminium

Finish Diameter

1.0mm to 3.26mm depending on entry wire size

Maximum Finishing Speed

17.75 m.p.s. depending on model

Elongation Per Die

26%

Maximum number of dies

14

First block diameter

254mm

Other block diameters

381mm, 245mm & 158mm

Maximum Motor

150 h.p.

PDF logo View original D14 & D13 spec sheet

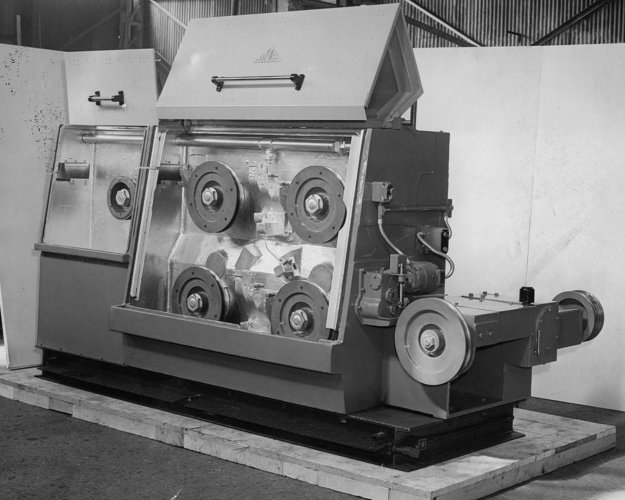

Picture: D14 Heavy Intermediate Wire Drawing Machine
